Grab bar rail with padded back bar
B-5892
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECIFICATIONS :

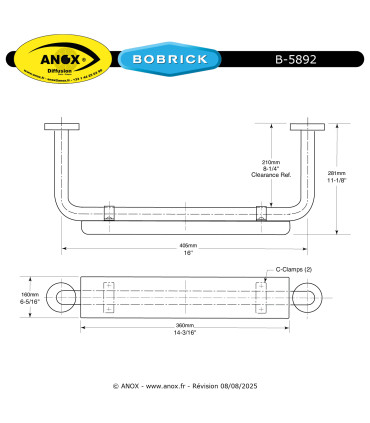

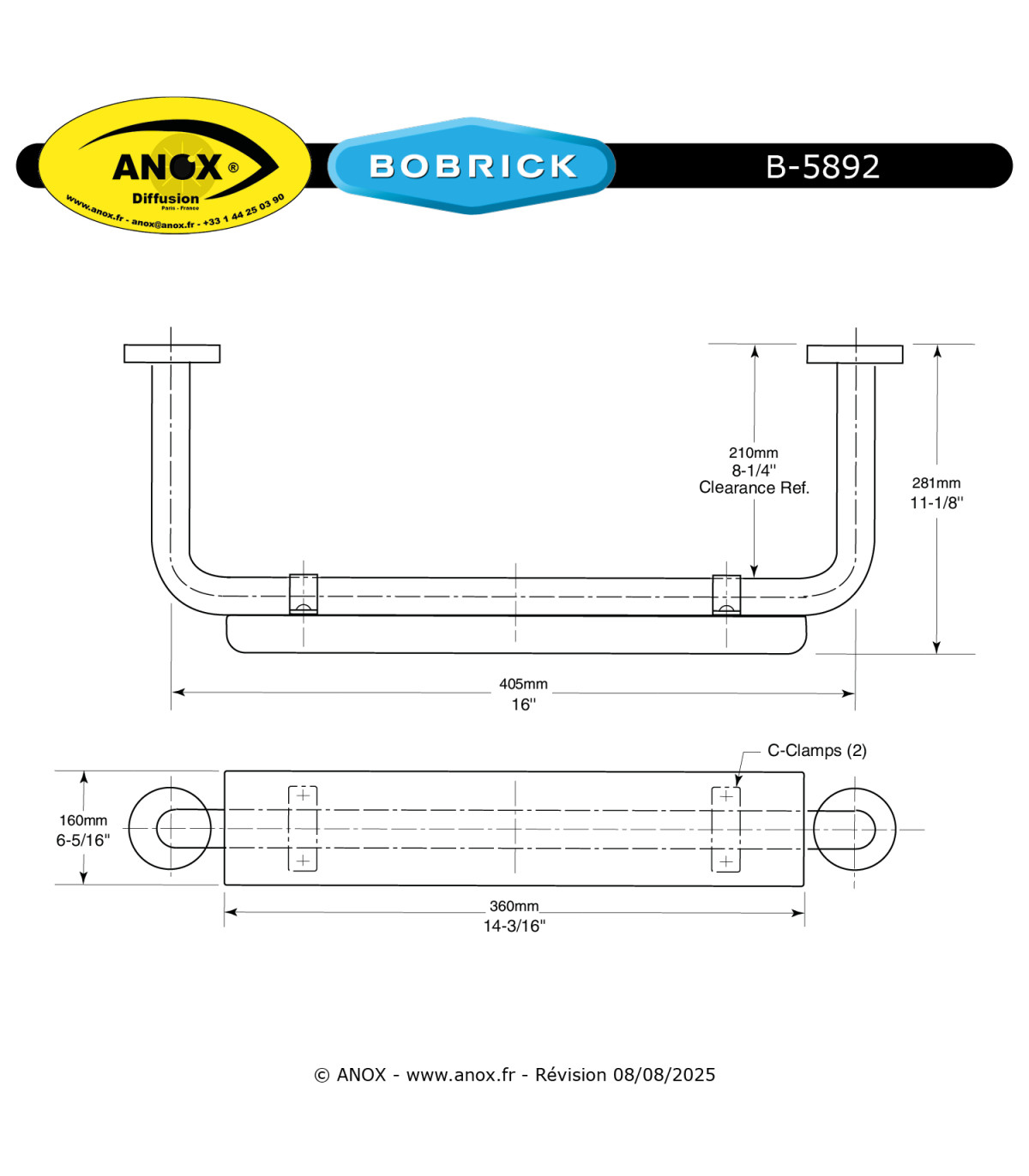

Grab bar shall be Type-304 stainless steel with satin finish. Grab bar shall have 18-gauge 1.2mm (18-gauge) wall thickness and 30mm (1-1/4″) outside diameter.
Clearance between the grab bar and wall shall be 210mm (8-1/4″). Concealed mounting flanges shall be 3mm (11-gauge) stainless steel plate, 50 x 80mm (2″ x 3-1/8″), and equipped with six screw holes for attachment to wall.
Flange covers shall be 0.8mm (22-gauge) stainless steel, 85mm (3-1/4″) diameter, and shall snap over mounting flanges to conceal mounting screws.
Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit.
Grab bar shall be equipped with a 360 x 160 x 40mm (14-1/4″ x 6-3/8″ x 1-5/8″) white polyurethane integral foam backrest.
Data sheet
- Type of product
- Grab bar rail with padded back bar
- Materials
- In stainless steel
- Finish
- Satin finish
- Product height (in mm)
- 160
- Product depth (in mm)
- 281
- Installation type
- Wall-mounted
